Name: MG622949-4 ASC 2M HOUSING(BOTTOM) - Cirkit Electro Components
SKU: MG622949-4

MG622949-4 ASC 2M HOUSING(BOTTOM)

ASC 2M HOUSING(BOTTOM)

by KET

SKU: MG622949-4 Category: Wire To Wire Connector Brand: KET

Specifications

Color	Gray
Pitch	4
Sealed	NO
Series	090 III (ASC) SERIES
Weight (g)	4.990
Voltage Rating	10
Connector Style	Male
Wire Gauge (AWG)	chfus 0.13~0.22,avss 0.22,avs(cavs) 0.3-0.5,civus 0.35~0.5,avs(cavs) 0.85~1.25,avss 2.0,aessxf 2.5,flaluy 0.75,flalry 2.0

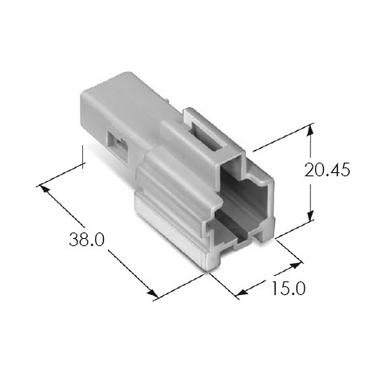

Product Size (mm)	15.038.020.45
Contact Resistance	3mΩ MAX
Mating Tab Width(in)	.090
Primary Locking Type	HSG Lance
Insulation Resistance	DC 500V 100MΩ MIN
Connector / Cable Type	Wire To Wire Connector
Housing / Plastic Material	PBT
Connector Position Assurance	NO
Manufacturer	KET
Product Name	ASC 2M HOUSING(BOTTOM)

MG622949-4 ASC 2M HOUSING(BOTTOM)
