Name: MG642925 3118 WP 3F CONN'T ASSY - Cirkit Electro Components
SKU: MG642925

MG642925 3118 WP 3F CONN’T ASSY

3118 WP 3F CONN’T ASSY

by KET

SKU: MG642925 Category: Wire To Wire Connector Brand: KET

Specifications

Color	Natural
Sealed	YES
Series	HYBRID SERIES
Weight (g)	18.107
Connector Style	Female
Wire Gauge (AWG)	187ii:avss 0.3~0.85,avss 1.25~2.0,avs 3.0,312ii:avs 1.25,avs 2.0~3.0,avs 5.0aexf 5.0,avs 8.0aexf 8.0

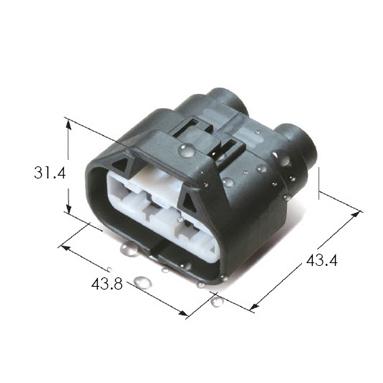

Product Size (mm)	43.8043.431.4
Contact Resistance	187II:3mΩ Max. (Initial),312II:3mΩ Max. (Initial)
Insulation Resistance	187II:DC500V 100MΩ Min,312II:DC500V 100MΩ Min
Connector / Cable Type	Wire To Wire Connector
Housing / Plastic Material	PBT
Connector Position Assurance	NO
Manufacturer	KET
Product Name	3118 WP 3F CONN'T ASSY

MG642925 3118 WP 3F CONN’T ASSY
