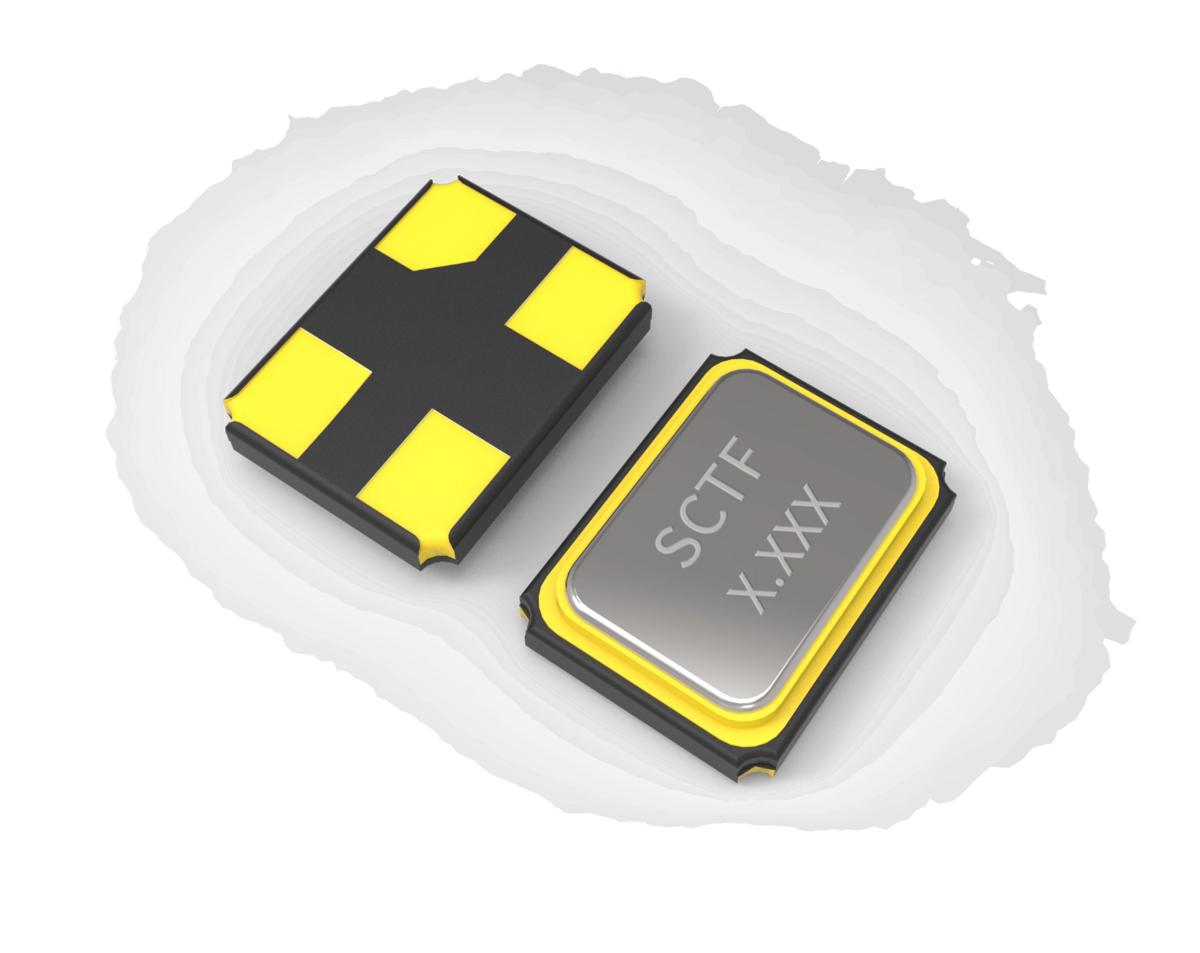

SX0B27.120F0810F30 27.12MHz ±10ppm 4-SMD Crystal

SX0B27.120F0810F30 is a high-precision 27.12MHz surface-mount crystal manufactured by SCTF, a reputable name in passive components. This compact 4-SMD crystal is designed to provide a stable and accurate frequency reference, which is crucial for the reliable operation of various electronic circuits. As a fundamental component in the timing and synchronization of digital systems, microcontrollers, and wireless communication modules, this crystal ensures precise clock generation, enabling consistent performance across a wide range of applications. Its miniature footprint makes it ideal for space-constrained designs, while its robust construction guarantees long-term stability under varying environmental conditions.

Key Specifications

The SX0B27.120F0810F30 crystal boasts several critical specifications that define its performance and suitability for specific applications. The Frequency of 27.12MHz indicates the nominal oscillation frequency the crystal is designed to produce, a common frequency for various radio frequency (RF) and data communication protocols. The Frequency Tolerance of ±10ppm (parts per million) specifies the maximum allowable deviation from the nominal frequency at room temperature, highlighting its precision. A lower ppm value signifies higher accuracy. The Frequency Stability of ±30ppm over the operating temperature range indicates how much the frequency can drift due to temperature changes, which is vital for maintaining timing accuracy in environments with fluctuating temperatures. The ESR (Equivalent Series Resistance) of 200Ω is a critical parameter that affects the crystal’s ability to start oscillating and its power consumption; a lower ESR generally indicates a more efficient and easier-to-drive crystal. The Load Capacitance of 8pF is the external capacitance required by the crystal to oscillate at its specified series or parallel resonant frequency, essential for proper circuit design. The Size (mm) of 1.6×1.2×0.35 illustrates its ultra-compact form factor, making it suitable for miniaturized electronic devices. The Operating Temperature range of -40℃ to +85℃ demonstrates its robust performance across extreme industrial and automotive temperature conditions. The Mounting Type is Surface Mount (SMD), indicating it is designed for automated assembly processes, and its Package / Case is a 4-SMD, specifying the physical form factor for PCB integration. The Frequency Range of 24-54MHz indicates the broader family of frequencies available in this series, offering context for this specific 27.12MHz part.

Features and Benefits

• High Frequency Precision: With a frequency tolerance of ±10ppm, this crystal provides highly accurate timing, essential for sensitive digital and RF applications, ensuring reliable data transmission and system synchronization.
• Wide Operating Temperature Range: Designed to function reliably from -40℃ to +85℃, it is suitable for demanding industrial, automotive, and outdoor applications where temperature extremes are common.
• Ultra-Compact Form Factor: The 1.6×1.2×0.35mm 4-SMD package allows for significant space savings on PCBs, enabling the design of smaller, more portable electronic devices without compromising performance.
• Surface Mount Technology (SMT): Compatible with automated pick-and-place manufacturing, facilitating efficient and cost-effective production processes for high-volume applications.
• Low Power Consumption: Optimized ESR contributes to efficient operation, reducing power consumption in battery-powered devices and extending battery life.

Typical Applications

The SX0B27.120F0810F30 crystal is versatile and finds application in numerous electronic systems requiring precise timing. One primary application is in Wireless Communication Modules, such as Bluetooth, Wi-Fi, and Zigbee transceivers, where a stable 27.12MHz reference is critical for accurate radio frequency generation and reception, ensuring reliable data links. It is also extensively used in Microcontroller Units (MCUs) and Digital Signal Processors (DSPs) as the main clock source, providing the fundamental timing for all internal operations, instruction execution, and peripheral synchronization. In Portable Consumer Electronics like smartwatches, fitness trackers, and compact audio devices, its small size and low power consumption are highly advantageous for maintaining precise timing in battery-operated gadgets. Furthermore, this crystal is suitable for Industrial Control Systems and IoT Devices, where its wide operating temperature range and robust stability ensure consistent performance in harsh environments, enabling reliable sensor data acquisition and actuation. Finally, it can be found in Automotive Electronics for various in-car systems, including infotainment, telematics, and engine control units, where high reliability and performance under varying temperatures are paramount.

The SX0B27.120F0810F30 crystal from SCTF offers an excellent balance of precision, compactness, and reliability. Its robust specifications make it an ideal choice for a broad spectrum of modern electronic designs. This component is readily stocked and shipped across India by Cirkit Electro Components, Mumbai, ensuring prompt availability for your projects.
