Name: MG642925-4 3118 WP 3F CONN'T ASSY - Cirkit Electro Components
SKU: MG642925-4

MG642925-4 3118 WP 3F CONN’T ASSY

3118 WP 3F CONN’T ASSY

by KET

SKU: MG642925-4 Category: Wire To Wire Connector Brand: KET

Specifications

Color	Gray
Sealed	YES
Series	HYBRID SERIES
Weight (g)	0.000
Connector Style	Female
Wire Gauge (AWG)	187:avss0.3~0.5, avs0.3~0.85, avss1.25~2.0, avs3.0, 312: avs1.25, avs2.0~3.0, avs5.0, avs8.0

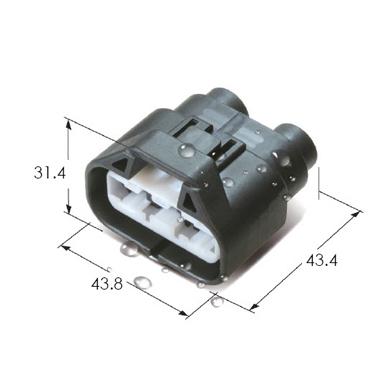

Product Size (mm)	43.843.431.4
Contact Resistance	187:3mΩ Max(Initial), 312:3mΩ Max(Initial)
Insulation Resistance	187:DC 500V 100MΩ Min, 312:DC 500V 100MΩ Min
Connector / Cable Type	Wire To Wire Connector
Housing / Plastic Material	PBT
Manufacturer	KET
Product Name	3118 WP 3F CONN'T ASSY

MG642925-4 3118 WP 3F CONN’T ASSY
