Name: MG621389-7 060 4M HOUSING(62C) - Cirkit Electro Components
SKU: MG621389-7

MG621389-7 060 4M HOUSING(62C)

060 4M HOUSING(62C)

by KET

SKU: MG621389-7 Category: Wire To Wire Connector Brand: KET

Specifications

Color	Brown
Pitch	3.3
Sealed	NO
Series	060 SERIES
Weight (g)	3.863
Voltage Rating	6
Connector Style	Male
Wire Gauge (AWG)	avs(cavs) 0.2~0.3,avs(cavs) 0.5~0.85

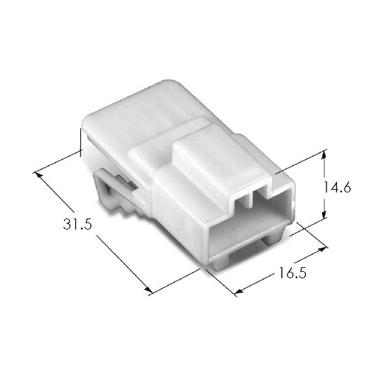

Product Size (mm)	17.531.514.6
Contact Resistance	5mΩ MAX
Mating Tab Width(in)	.060
Primary Locking Type	HSG Lance
Insulation Resistance	DC 500V 100MΩ MIN
Connector / Cable Type	Wire To Wire Connector
Housing / Plastic Material	PBT
Connector Position Assurance	NO
Manufacturer	KET
Product Name	060 4M HOUSING(62C)

MG621389-7 060 4M HOUSING(62C)
