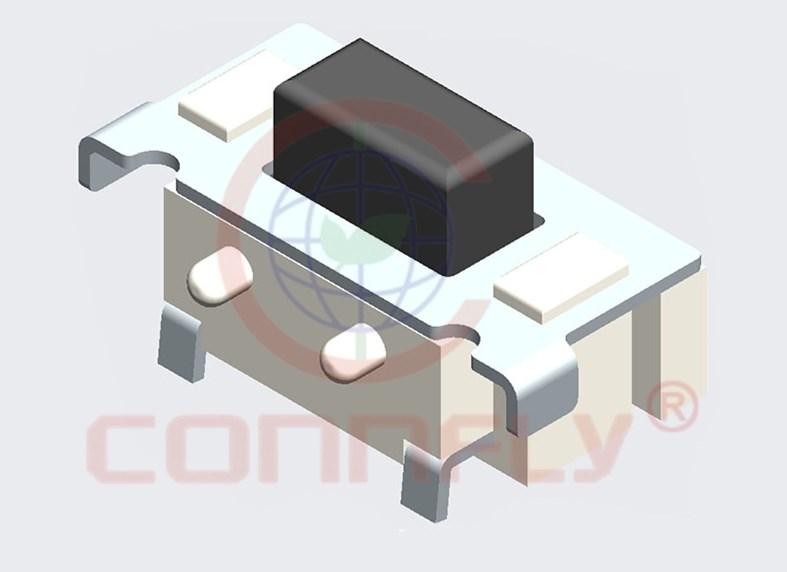

3.6*7.0mm Tact Switch SMT Type
by Connfly
Product successfully added to the Quote List
Specifications
| Mounting Type | |
|---|---|
| Contact Material | |
| Withstand Voltage | |
| Plastic Flame Rating | |
| Type | Tactile Switch |
| Color | White |
| Packing Type | Reel |
| Contact Finish | Silver Plating |
| Current Rating | 50mA Max |
| Contact Resistance | 100mΩ maximum |
| Insulation Resistance | 100MΩ minimum |
| Operating Temperature | (-25-+70)℃ |
| Soldering Temperature | 240℃ |
| Voltage - Rated / Coil | 12V |
| Housing / Plastic Material | High-temp Plastic |
| Number of Positions / Contacts | 2 |
| Manufacturer | Connfly |
| Product Name | 3.6*7.0mm Tact Switch SMT Type |
